Nau Retail
Hardware Hardware
Install Package
Server Computer
Windows 2012 or later operating system
8G of RAM; 16G or higher recommended
19" LCD 1600x1200 resolution monitor,or higher
MS-SQL 2012 Express(DB가 많은경우 Standard Edition권장)
Yearly Sale $1,000,000 (1 item $3.0~$3.6) Sale DetailRecord (280,000~285,000)
2Month 1G data 1Year-about 6G data
Data Convert
BackOffice Computer
19" LCD Monitor
1440 x 900 (Fix Size)
Handheld Scanner
Report Printer(Letter size)
Dymo Printer
POS Couputer
Handheld Scanner
POS Thermal Receipt Printer
Cash Drawer
Magellan Scanner(Serial Port)
IBM keyboard
MS SQL SERVER
SQL Server 2019 (15.x)
SQL Server 2017 (14.x)
SQL Server 2016 (13.x)
SQL Server 2014 (12.x)
SQL Server 2012 (11.x)
BackOffice
SERVER Computer
CPU : Intel Xeon 이상권장
HDD : 500G이상(Raid 1 권장)
OS : Windows 2012 Server 이상
Memory : 최소 8GB, (Recommend 16Gb)
Monitor : 1600x900 (최소: 1366x768)
SQL : MsSql 2012 Standard or MsSQL 2012 Express
Printer : Zebra_TLP2824, ZPL is supported. For example(ZD410,ZD411,ZQ630...)
ZPL Command Information and Details for Zebra Printers
Printing ZPL scripts with Notepad
Zebra Label Printer Programming Language Support Information
Dymo LabelWriter 450 Tubo
POS System
Window 2012 R2 editions
Hardware and Software Requirements for Installing SQL Server 2012
Physical Memory Limits: Windows Server 2012
MSSQL Server MaxServer Memory Setting
POS Computer
SQL : MsSql 2012 Express
CPU : 최소 1.4Ghz, (Recommend 2.0Ghz)
Memory : 최소 2GB, (Recommend 4Gb)
Monitor : Sale Screen Support Resolution
1.IBM Keyboard (1024x 768) WxH
2.IBM Keyboard (1280x1024) WxH
3.IBM Keyboard (1600x 900) WxH AD Screen w570xh880
4.IBM Keyboard (1920x1080) WxH AD Screen w620xh1060
5.Touch Screen (1024x 768) WxH
6.Touch Screen (1280x1024) WxH
Handheld Computers
Honywell 70 Series RFID Handheld Computer
CK3R Handheld Computer
CX3x handheld Computer
Scanner Scale
Datalogic Magellan 8200, 8400, 9300, 9400i, 9800i (Recommend)
PSC Magellan SL 382
PSC Megellan 9500 Profile Name: MagellanSC / SCRS232Scanner
NCR 7878-2000 Profile Name: NCRScale.7872 / NCRScanner.7872
NCI-7620 Profile Name: NCI7620
CAS PD-II OPOS not support MScomm Port
Handheld Scanner
Datalogic Magellan 에서 지원하는 Scanner QBT2131-BK-BTK1
Datalogic QuickScan I QBT2131 Handheld Barcode Scanner QBT2131-BK-BTK1
Wireless (Datalogic)
- QuickScan I QBT2131
- QuickScan I QBT2400
- QuickScan I QD2400
- Gryphon I GBT4400 2D
Cable
- 90G001092 (Magellan과 호환 가능)
- 90A052258 USB
Symbol 2208
Zebra DS9208
Honywell Orbit MS7120
Honeywell Xenon 1900
Keyboard or Touch Screen
-Touch 1024x768 이상
-IBM POS Keyboard

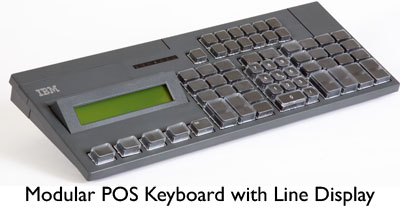

IModular 67-Key Keyboard with Line Display
POS Printer
Bixolon SRP-340 or Other(Korean Support)
SNBC BTP-R180II (Korean Support)
Epson TM-T20II (Recommend)
Other OPOS를 지원하는 Printer
Cash Drawer
CRS Model 23 Deluxe POS Cash Drawer
POS-X [ion-c18a-1b] ION CASH DRAWER 18x18 Blank
CreditCard
-Pax PX7, Q30, S300
ENV Support
Support Processing.
IBM keyboard + IBM USB Cable +USB Extend Cable
Credit Card Terminam + Stand Frame
Scale + Serial Cable + Power Cable
PS/2 to USB Convert
NGM1 POS - PCI Express UART Comport
